One galaxy, from raw archive to finished picture

The whole pipeline in 31 seconds — every frame built from the real M101 data.

The survey-telescope images in this journal don't come out of the archive looking like pictures. They come out as raw tiles of linear data — nearly black to the eye, split across files, some of them quietly defective. Everything between that and the finished image is the pipeline below. It's the same one, end to end, whether the photons came from my backyard Seestar or a 4-meter national telescope.

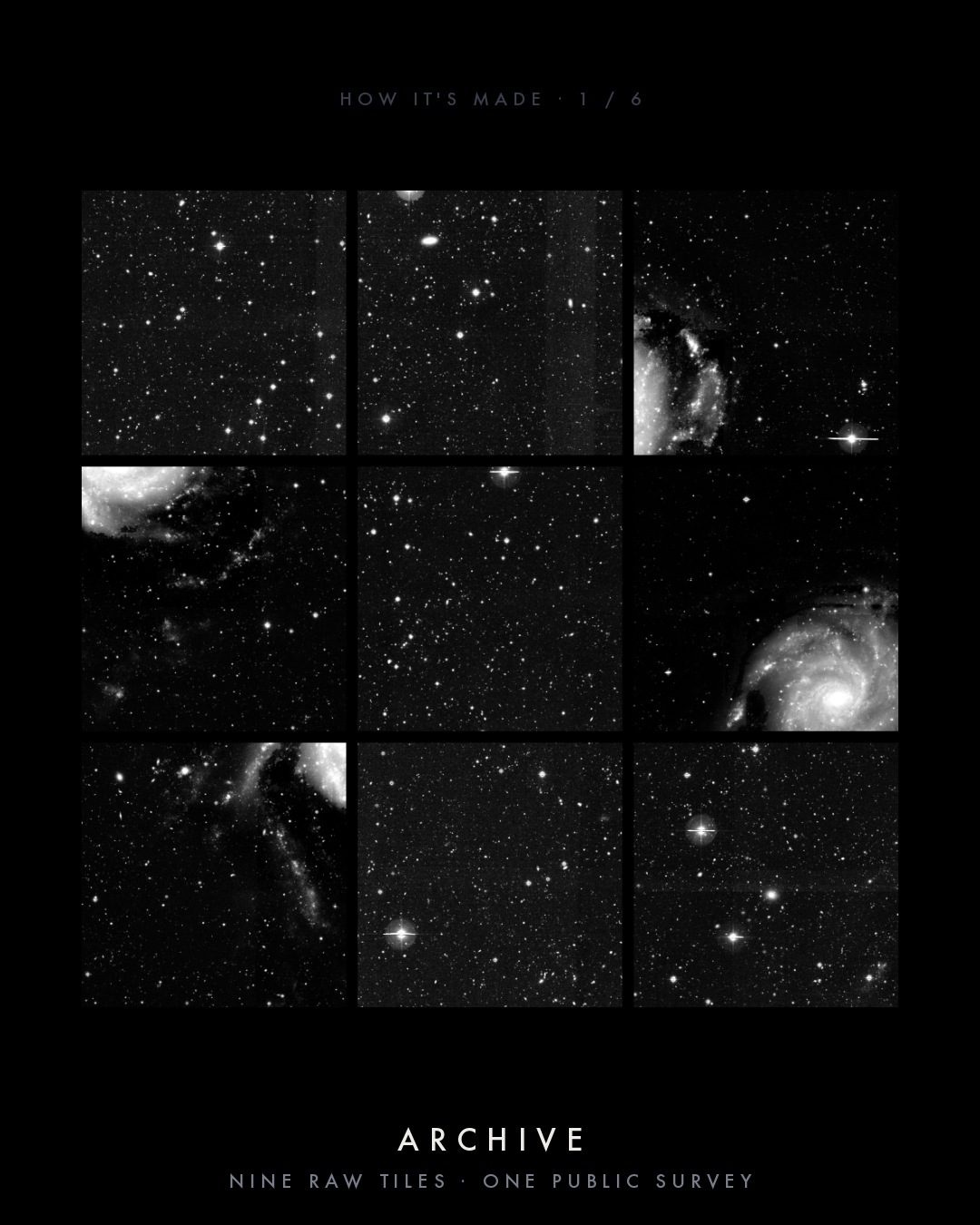

Stage 1, Archive: a three-by-three grid of nine raw survey tiles of M101 in grayscale, with mismatched sky levels between tiles.

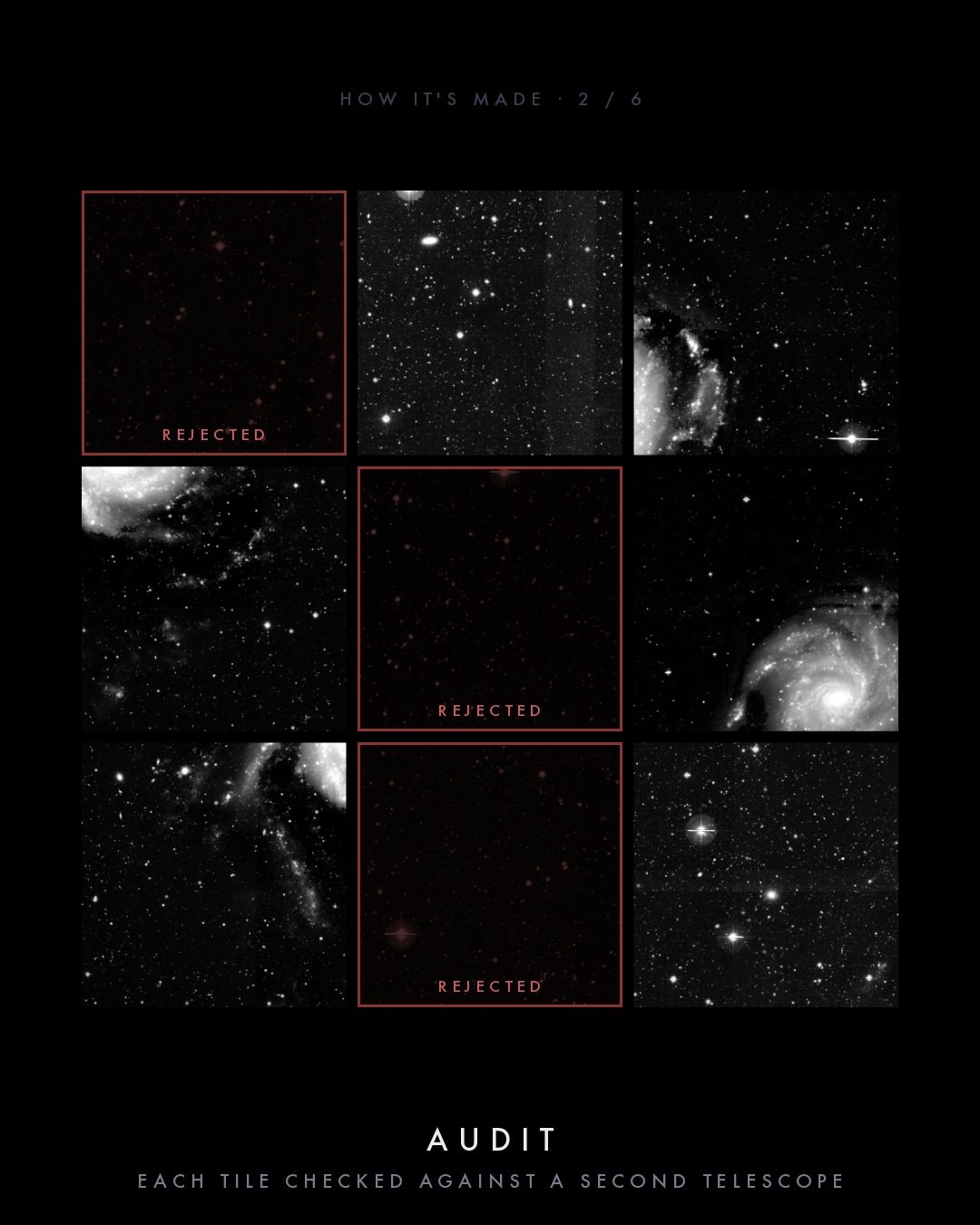

Stage 2, Audit: the same nine tiles with three of them dimmed red and marked REJECTED after being checked against a second telescope.

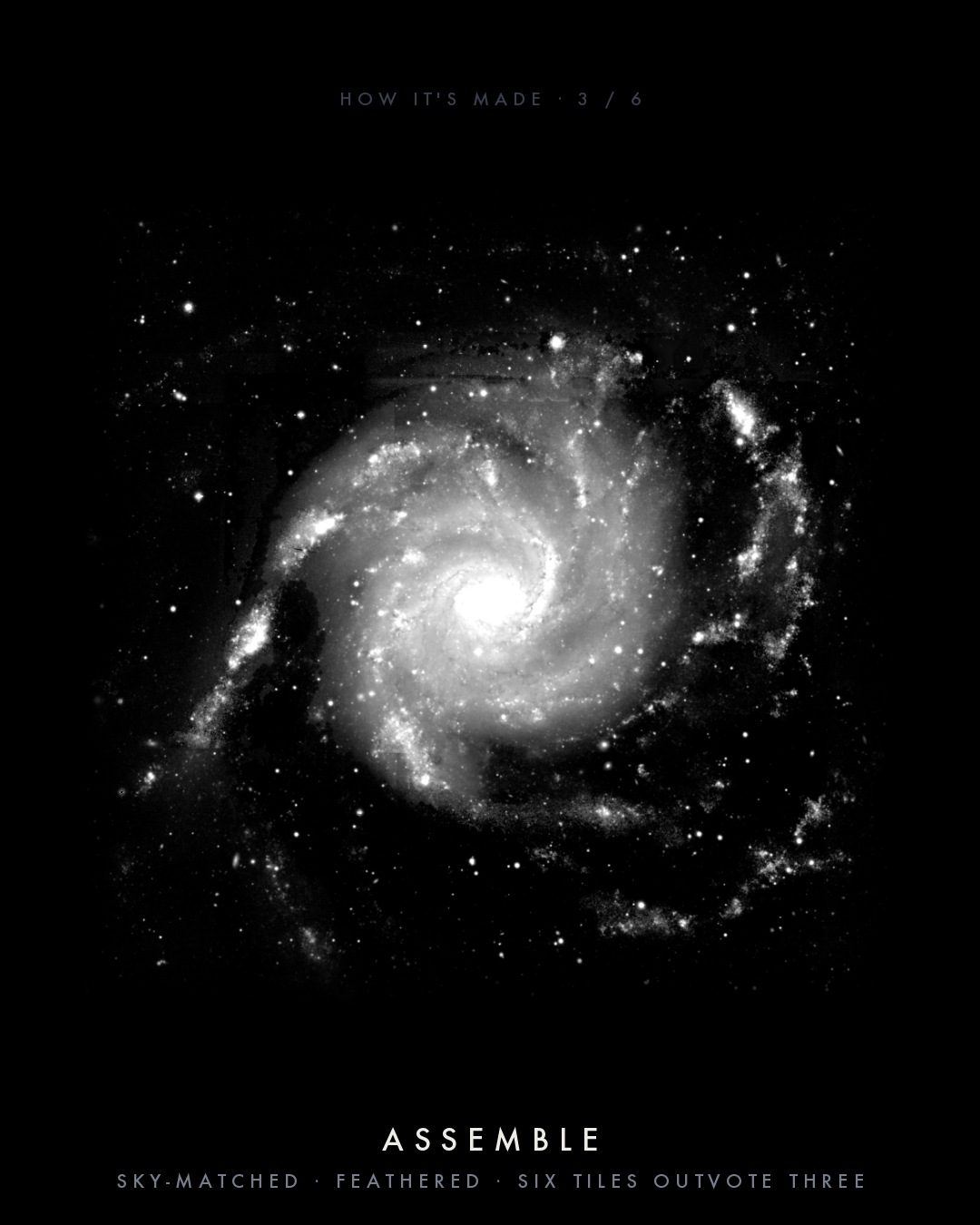

Stage 3, Assemble: the remaining tiles blended into one seamless grayscale mosaic of the Pinwheel Galaxy.

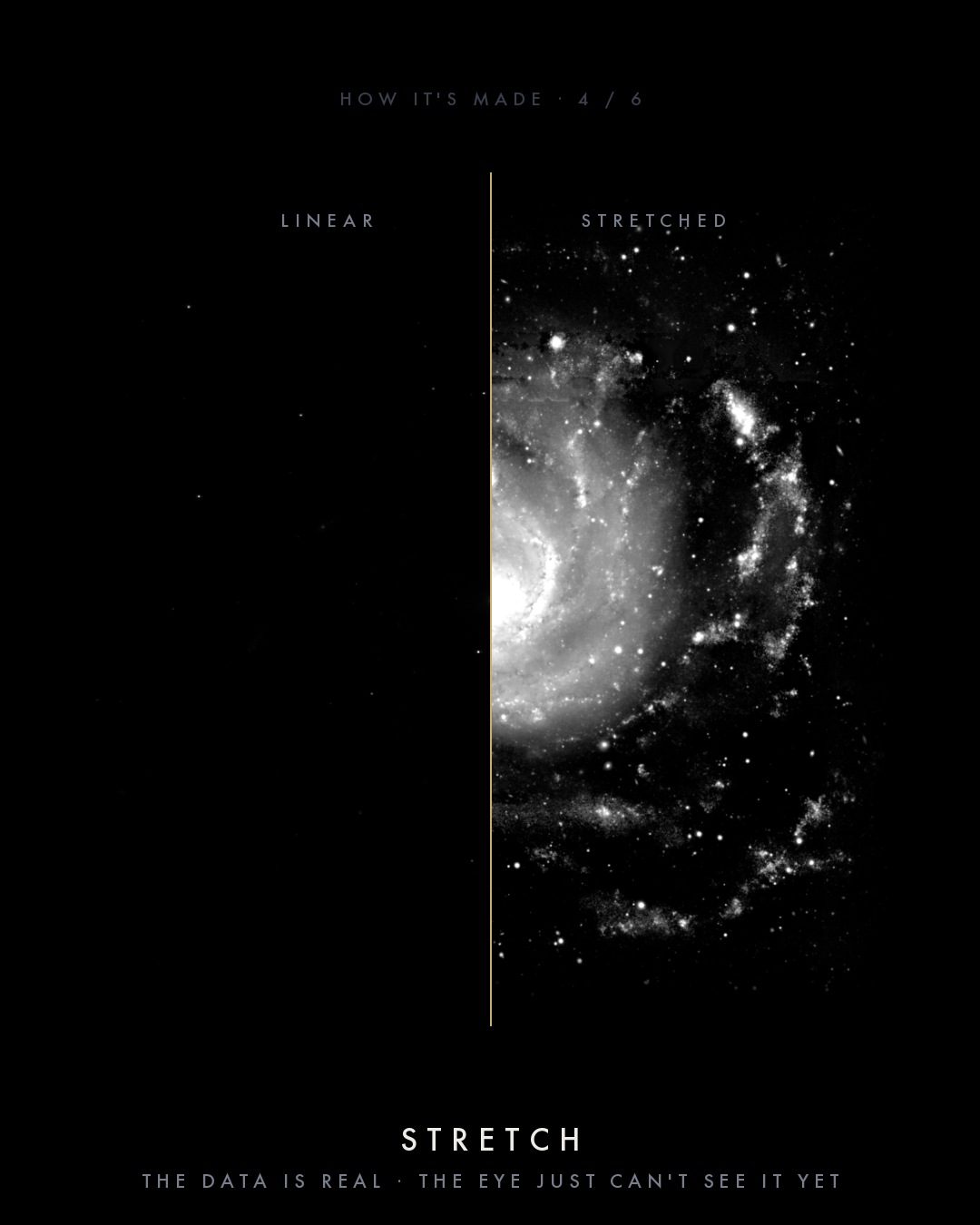

Stage 4, Stretch: a split image — the left half near-black linear data, the right half the same data stretched so the galaxy is visible.

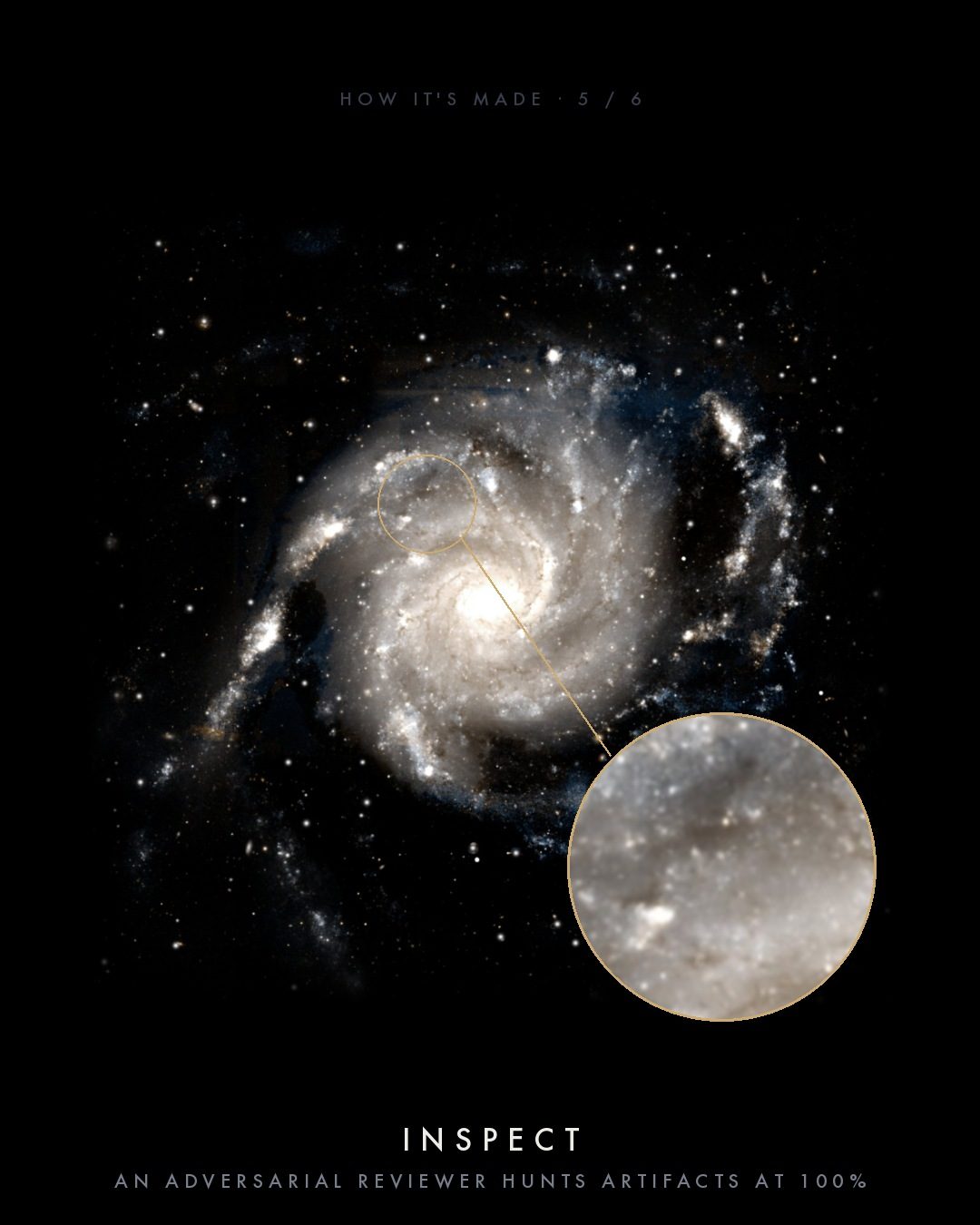

Stage 5, Inspect: the color image with a gold magnifier circle enlarging a section of a spiral arm for artifact review.

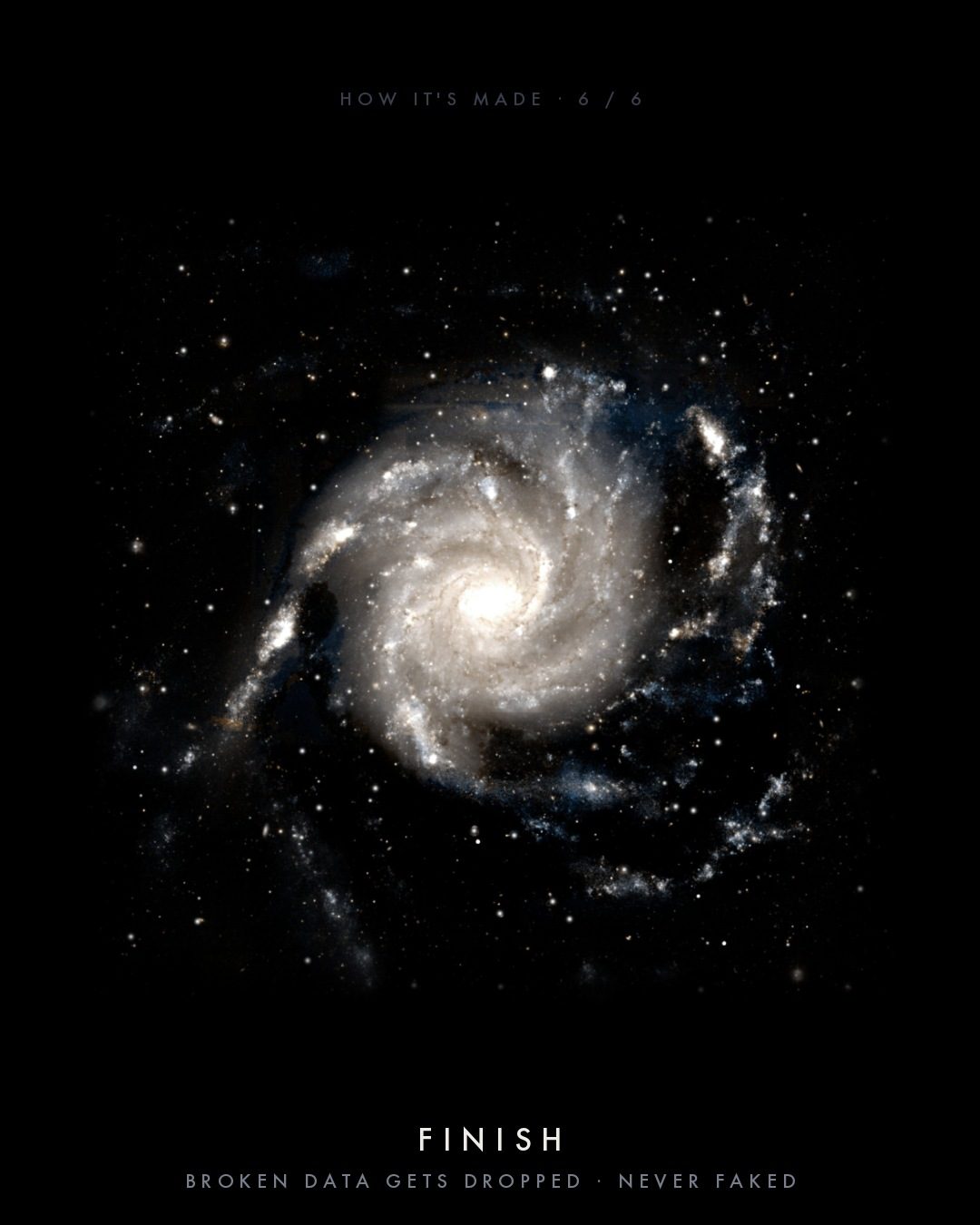

Stage 6, Finish: the completed natural-color image of M101, captioned "broken data gets dropped, never faked".

Where the light comes from

Every telescope is a bucket for light. The wider the bucket, the more photons per minute — and everything else in the pipeline is about not wasting them. These four buckets are drawn to scale.

Light-collecting power relative to the Seestar — same sky, very different buckets. The dotted ring marks the Seestar; without it you'd miss the dot.

CollectThe aperture gathers photons — minutes of them, stacked for hours
RecordA cooled sensor counts them, one exposure at a time
StackDozens of exposures average away the noise
StretchThe same pipeline you saw above turns counts into a picture

The small bucket in that chart is the one on my patio — a ZWO Seestar S50, ~$800, and the reason this journal exists.

See it at ZWO →On Amazon →My full gear list →

Some links here are affiliate links (ZWO and Amazon Associates) — Sitreps may earn a small commission, at no extra cost to you.

How much sky?

Aperture is only half of a telescope. The other half is how much sky it can swallow at once — and here the giants pay for their power. These three windows are drawn to the same scale.

Drawn to scale. The dotted ring marks Hubble's window; without it you'd miss the speck — the same trick the aperture chart needed for the Seestar.

That's the trade: the 50 mm lens drinks a whole square degree at once; Hubble's mirror resolves sixty times finer detail through a keyhole. Covering the full Veil Nebula at Hubble resolution would take over 3,000 pointings — tiling the Moon alone would take about a hundred. So the backyard telescope finds the battlefield, and the observatory interrogates one square inch of it. Neither replaces the other. That's not a limitation — that's the division of labor all of astronomy runs on.

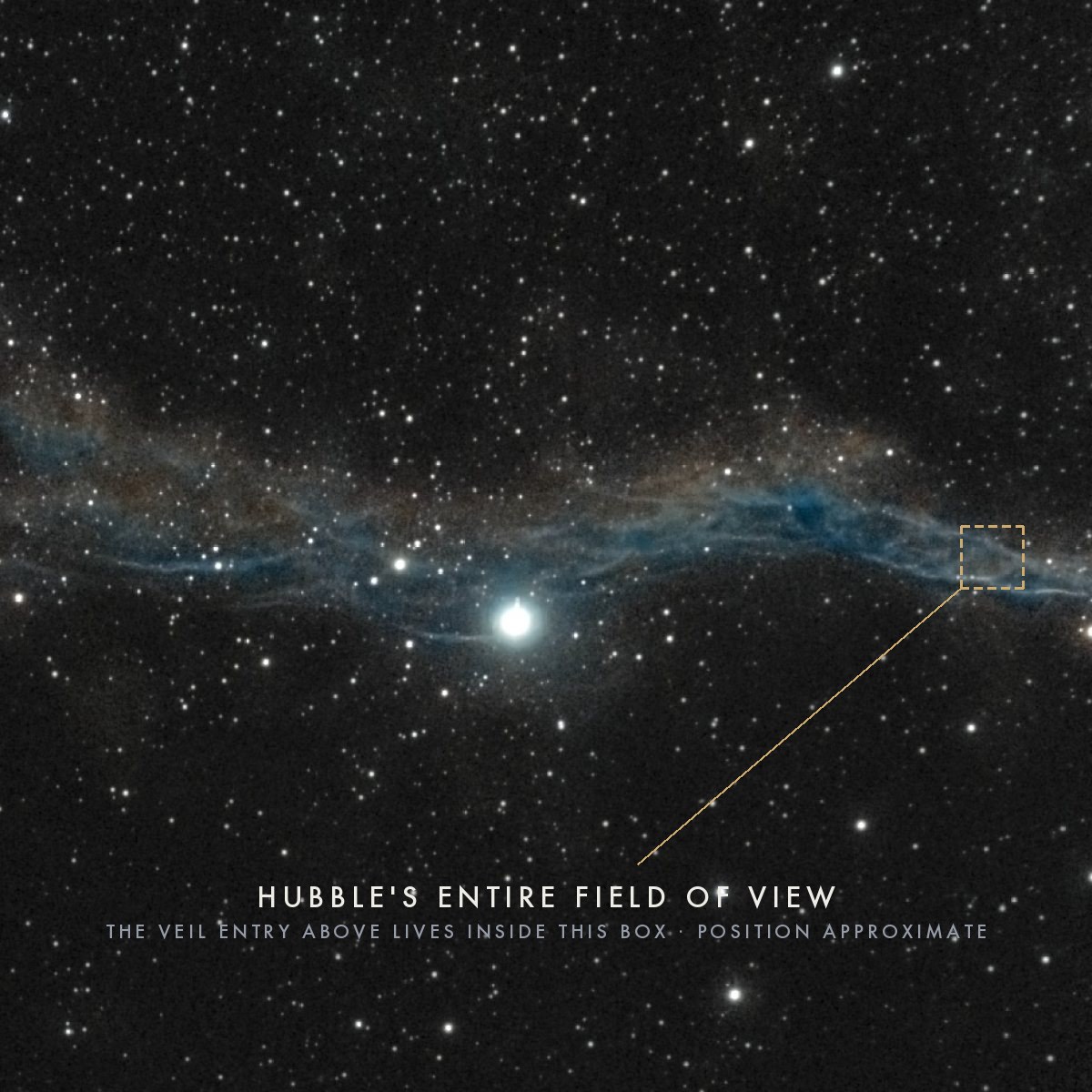

A backyard Seestar photo of the Witch's Broom nebula with a small dashed gold square marking the approximate footprint of Hubble's entire field of view on the northern filament. — The idea in one picture: my backyard frame of the Witch's Broom, with Hubble's entire field of view drawn to scale on the filament (position approximate). Everything inside that gold box is this entry →

The proof

The galaxy in this walkthrough is M101, the Pinwheel — the hardest field of the whole series. Three of its nine tiles were defective, its third color filter was unusable, and the "flaw" everyone wanted repaired turned out to be the galaxy's real shape. The finished entry tells that whole story.

See the finished M101 →All entries →
